借款用途与筒介：Purpose and introduction

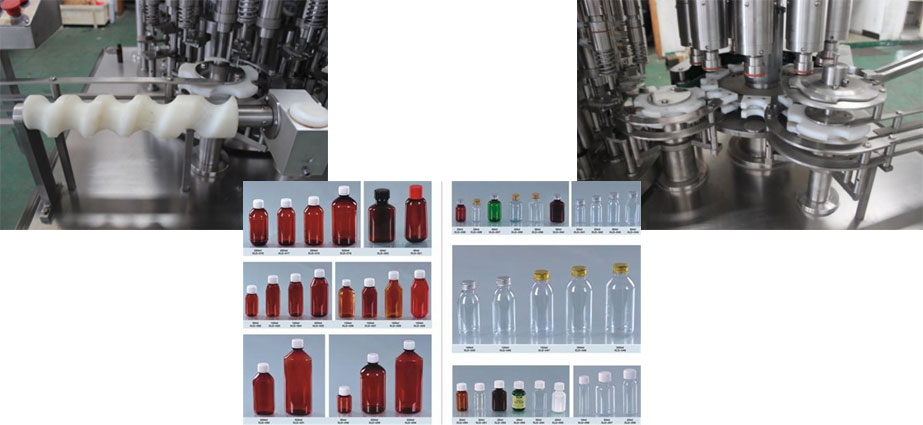

滤油机适于于对30-500ML类别磨砂玻璃容器、塑胶瓶的包装密封。用往来账户结交式汽缸做好包装，电磁感应震荡送盖，行轧盖(金屬式)或旋盖(塑胶盖)密封，行和前后轮的分娩加工过程设备相连接分解成分娩线，另外行够买百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特色：characteristic

装量准确无误，杜尽漏滴。缺瓶不装灌。 交流变频变频调速。 自动展现计数器攻效。 整个机器均按GMP规范设置。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技術性能参数/technical parameters：

型号 model	NQGX30-500
使用规格尺寸Cutting dimension	30-500ml
主产地技能Production capacity	80-200瓶/分（罐/分钟的英文）80-200 bottles/min (cans/min)
灌装生产线导致精度 Filling accuracy	≤±1%
电源模块 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械厂重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
