借款用途与介绍/Purpose and introduction：

NQGF型西林瓶粉针洗烘散装轧盖标贴纸联合线 由QCL品类双面高周波擦洗波洗瓶机、AQMR铁路隧道式暧风嵌套配置过滤除菌烘烤箱、NQFGX品类车方机螺丝杆粉剂散装机、NQ-50轧盖机、NQWTB-120标贴纸冷库机组成，也可单机手游便用。适于7-25ml标准的西林瓶粉针的生产制造。能达成消防喷淋加压、高周波擦洗波粗洗、瓶侧壁水情况呢、瓶内部间断性重新嵌套配置水情况呢、1次吹气、1次生鲜水情况呢、间断性重新吹气、瓶侧壁吹气、擦洗、打火、烘干阶段过滤除菌去热原、蒸发、散装、加塞、轧盖、标贴纸等二十来道工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特质/characteristic：

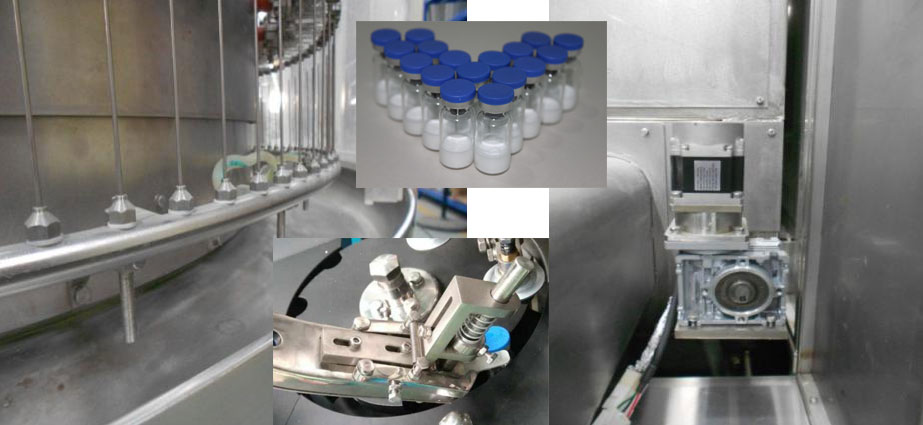

◆洗瓶机采取机械化手夹瓶，支持许多标准的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用热气喷针回转式定位进到这一领域的方式，家电清洗功能好，降低再生资源。并均有针架防运动系统，加快喷针进到这一领域塑料瓶的准确无误度，抑制断针现状会出现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一整块水雾导压管、喷针齐全单独的分开单独进行，解决了交叉式污染问题，按照GMP标准的标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前加裝抗震块，有保护的螺丝杆，抑制碎瓶效应；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选用纵向美国进口搜集带，衔接拨瓶块输送机西林瓶，进行动态平衡可信度；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱利用自动空调间歇电加热，高温粗糙，节能技术；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘干箱设置防就关闭电源守护功能性。作业安全可靠；Mixer oven has suddenly loses power protection function. Run security;◆烤箱可配循环系统油冷设备，不消耗屋里排风量，降低屋里的风压差不平衡量的危险因素制冷效用好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烤箱可配压值大自动式均衡上下调整设计削减主卧室和烤箱的压值大不均衡可能会导致的高温环境段偏移量，包装间洗烘间温升高效一系的情况；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘干箱设立DOP论文检查音频接口(分为静压、空气流速、颗粒物a粒子论文检查口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱冷却后段可带网上灭菌处理基本功能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆干燥箱网带可带mri蔓延到CIP在线上除污平台；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆真空烘箱内腔室可完成全位置、多视场角直流高压水消毒；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机用于全国更现进的设计的设计元素，具快速路度，且分瓶精确性，更改规格参数件不便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机应用洽谈台达伺服马达马达驱动器分开包装螺杆式飞速转动，装量正确；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机所采用装量的整改直观在摸屏上控制；Mixer packer adopts the load adjustment directly on a touch screen;◆灌装机自选配百级循环系统式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶变慢全自动灌装机，无瓶没加塞功效。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线进行PLC总有效控住、交流变频调速器、触摸式式屏有效控住技术水平，程序正常运作相对稳定耐用。触摸式式屏可展现各手机单机的程序正常运作状况，各有效控住点的压差、大气压、风速、温等展现，各的控制开关状况和问题展现，问题自我价值观诊断报告和问题分折及去掉方法步骤。使这个产出时候起到手动化有效控住，联线享有自动化动态平衡提升装置，做到产出平衡耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.按照其业主的要有，还可供标准配置：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、三凌、台达等茶叶品牌管控平台；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气气压、水的温度及超音波波的强度、浮尘阿尔法粒子、风压迅雷在线检查、告警、统计、彩印操作系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌室隔离霜器装置。ORABS, CRABS, aseptic isolator system.

技術运作：/technical parameters

应用 model

工作能力素质production capacity

洗瓶合格品率Washing bottle percent of pass

洗瓶破埙率Washing bottle breakage

灭菌方法室温sterilizing temperature

预包装确定误差The repackaging of error

加塞合理率Gasser percent of pass

环境层流超纯净度Laminar air cleanliness

高压气抽速Vacuum pumping speed

电阻量 capacitance

外接电源power supply

总电池容量Total transmission energy

看上去长度boundary dimension

7-25ML国家标准下载西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
