用处与介绍/Brief introduction：

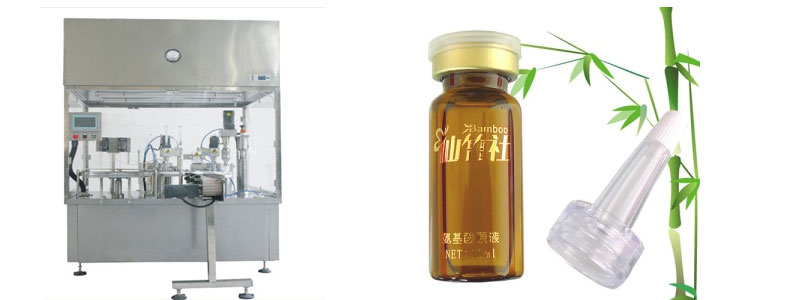

机器是在的技术引进和吸收的作用在美国优秀的技术的基础条件上，尽我所能集团有意识的主动开发的款靠谱针对性西林瓶的包装、上塞、旋（轧）盖机。机器适用法国全进口货高信得过性强，精密度封闭性式轴承计算精度等级钳台器，信得过性强，精密高，作业信得过，用到质保期长。该计算精度等级器机构简单的，持续用到需不需要处理。该制造设备主要是可主要适用各样小含水量夜体的装灌、压塞及旋（轧）盖，如复方精油、皮下注射剂等。非常广泛主要适用食材、药业、煤化工服务行业及成果转化域。该选果机既可单机游戏制造制造，又可与洗瓶机、烘干机等制造设备结构一体化制造制造线。完完全全具有发达国家GMP规定让。该制造设备还可以会按照大家规定让在线升级不间断增加。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

优势特点/Characteristic:：

◆电脑接面操控、运营主观方便快捷、PLC操控，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆直流变频空调抑制、生产加工速度慢随意调低、半自动记数。Frequency control, the production rate be adjusted automatically count  ◆自然停止模块，无瓶不灌装线。No bottle no filling.◆圆板位置式灌装生产线，平衡可信。Disc positioning filling, stable and reliable.◆高误差轴承测量范围计调节，固定*。High-precision cam meter control, precise positioning.◆采用了SUS304及316L304不锈钢制造出，可以包含GMP想要。SUS304 and 316L stainless steel, full compliance with GMP requirements.

水平叁数/ technical parameters：

装量领域Filling volume	5-50ml
装量偏差loading error	≤ ±1%
旋（轧）盖合适率 Rotation (rolling) Cover pass rate:	≥99%
生产的力Production capacity	30-60🐽瓶/分 钟  中速 70-100瓶/分 钟   &nbs♋p; 高速度 30-60 bottles ꧂/ min  70-100 bottles / minute (high speed)
压塞率Tamponade rate	≥99%
电源开关 Power	380V/50Hz
工率Power	2.0 kw
工具净重量Net weight	600 kg
外型尺寸 Dimension	2000*1000*1500mm
