用处与简价/Brief Introduction：

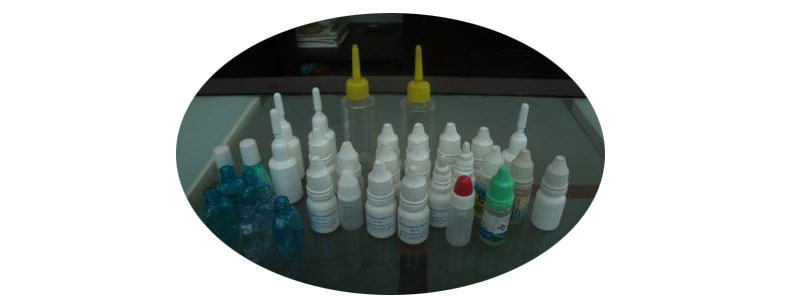

机器适宜于2-30ML各个质量的正方形扁形塑料件或磨砂玻璃酒瓶的眼麻醉药装灌设备、手机烟油等小使用量装灌设备.机器由高要求轴承轴测量范围公司带来测量范围等分盘标记上塞上盖;高速度慢度轴承轴机械机械传动带来旋盖头的上升下降;恒扭力旋盖;良好运动泵计算装灌设备;触屏屏控住.无瓶不装灌设备,要加内塞,外盖.具标记精确度高,机械机械传动趋于稳定,爱护瓶子,计算准.使用简略等的优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微网上场景人物风格的设定在、装量精准、实操省事。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机电机转速可做出有级交流变频变速。the mainframe running speed is stepless frequency conversion.◆生孩子量系统自动降钙素原检测设定。the product quantity can be controlled. ◆多个内部故障表示能力(如低汽压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自動断电作用，对同一个导轨显现接连无罐装、无内塞现状可自動断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

能力参数值/Main Technical Parameters：

选用尺寸规格Filling Volume	2-30ml
生产加工力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装设备精准度Filling Precision	≤±1%
供电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自行上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
热效率 Power	2.0 kw
广州POS机毛重Weight	550 kg
外观简约时尚厚度Dimension	1800*1000*1500mm
