应用领域与详细介绍/Purpose and introduction

该生产加工线由理瓶机(上瓶台)、超音波波洗瓶机，分装(旋盖)加塞机，轧盖机，标贴机等机械组建On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

特性/characteristic：

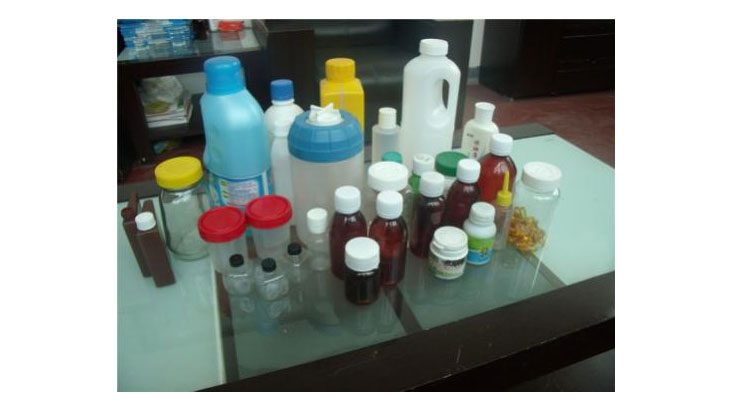

该加工线是和于 30-500ml系列作品產品的灌装线加塞封好，更改些许品种冲压模具后，既是和于材料瓶，也是和于钢化塑料瓶。具备有不适应依据比较广泛，调正非常方便的特殊性。整线加工业务能力；适塑料瓶数值线条，产品消费黏性而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

高性能指标指标/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶卫生度Washing bottle cleanliness(%)	> 99
装量确定误差The load error(%)	0-2
上塞达标率率Plug on the percent of pass(%)	> 98
轧盖合理率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
