应用领域与简绍：/Purpose and introduction

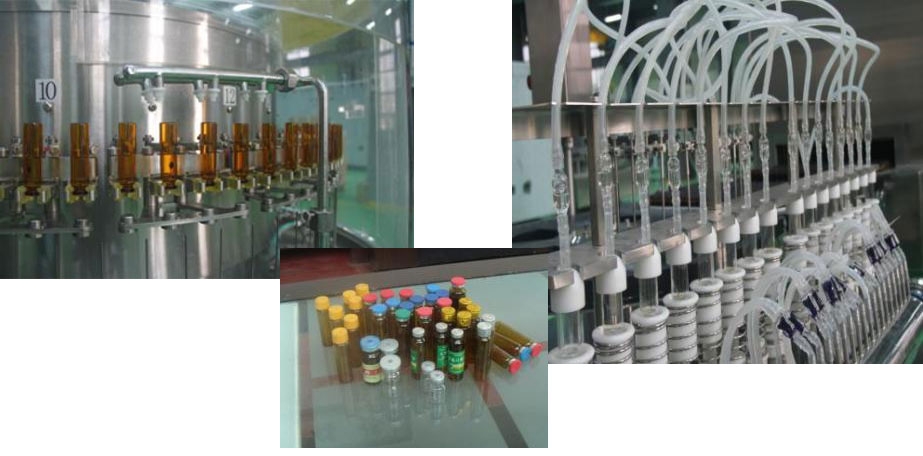

内服液洗烘灌轧互通线由落地式高周波检查波洗瓶机、队道式暧风 配置灭菌处理方法吹干箱、内服液装罐轧盖机等组合，适用于于 5-30ml 等不一规 格内服液瓶的产生。可搞定对药物产生中安瓿瓶淋水、高周波检查波洁净、冲水、充 气、吹干灭菌处理方法、待冷却、装罐、轧盖等新工艺过程的互通操作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特性:/characteristic

◆洗瓶机选取物理手夹瓶，适用性多类金桥铜业跨接线的截面积大小的瓶盖；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶应用雾水喷针回转式跟进添加图片图玩法，拆洗特效好，节电资源。并包括针架防跳动安装，加快喷针添加图片图瓶盖的正确度，以减少断针的情况的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一个水蒸汽输送管、喷针全独有单独，尽量不要了交叉的情况弄脏，达到GMP规则条件；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前改加缓冲器块，有爱护螺母，以减少碎瓶功能Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶适用产品进品导入带，衔接拨块卸料口服方式液，操作保持稳定可以信赖In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱利用红外线加熱管，不锈钢材质的加熱管双重加熱溫度均匀的性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装生产线轧盖机自选配陶瓷厂家泵、不绣钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖功用。Pieces filling without bottle filling, no bottle no rolling function.◆整线使用PLC总调控、交流变频电机、触屏屏调控水平，使用不稳定性靠谱。触屏屏可表示各单机联机的使用工作环境，各调控点的水管打压、空气压力、静压、温湿度等表示，各旋转开关工作环境和错误代码表示，错误代码自我管理鉴别诊断和错误代码研究分析及去掉方式 。使全部分娩的的时候提升自行化调控，联线具备着三机电气自动化平稳部件，可以保障分娩的营养均衡靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.通过企业的要，还可供标准配置：According to the needs of customers, but also available for selection:◆PLC、德力西、三菱PLC、台达等项目调整操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负荷、水的温度及多普勒彩超波标准、颗粒物粒子束、风速等级同屏在线查重、报警灯、记录好、彩打机系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作隔离霜器软件。Mixer ORABS, CRABS, aseptic isolator system.

技艺主要参数：technical parameters

选用年纪Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装可靠性强，精密度Filling accuracy(%)	≤ ± 2.5
装灌头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖良好率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
